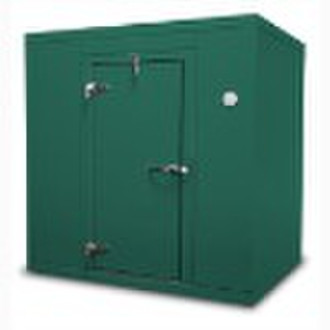

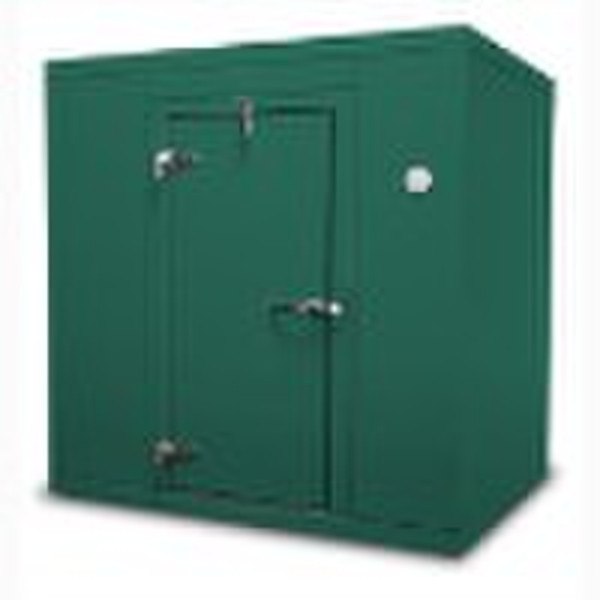

Modular Cold Storage room

Modular Cold Storage room,cold storage room Application 1.Vegetable, Fruit Storage Cooler (0-5'C) 2.Drinks, Beer Walk in Cooler (2-8'C) 3.Meat, Fish Storage Freezer (-18'C) 4.Medicine Storage Cooler (2-8'C) 5.Medicine Storage Freezer (-20'C) 6.Meat, Fish Blast Freezer (-35'C) General Design Conditions: 1.Ambient Temperature: +35'C 2.Storage Volume: 50% 3.Compressor Runtime: 16Hr/day 4.Safety factor: 10% 5.Cooling Time: 2Hr. Cold Room Panel ModelTypeMaximumLengthThickness of Cover SheetElement ThicknessWeightKg/m²U valueW/m²KFire ResistanceOuterInnerIsolatenow™ Cold Room PanelPU24 m0.6 mm0.5 mm100 mm12.80.26B2150 mm14.90.17B2200 mm17.10.13B2Cover sheet material: stainless steel,painted steel,FRP Grille Cold Storage roomOutline ModelDimensionVolume (m³)Door (mm)(m)(ft)FR-0X1.8×1.8×2.46×6×86.1830×1900FR-1X2.4×2.4×2.48×8×811.3830×1900FR-2X2.4×3.0×2.48×10×814.4830×1900FR-3X2.4×3.6×2.48×12×817.4830×1900FR-4X2.4×4.8×2.48×16×823.5830×1900FR-5X3.6×3.6×2.412×12×826.7830×1900FR-6X3.6×4.8×2.412×16×836.0830×1900FR-7X3.6×6.0×2.412×20×845.4830×1900FR-8X4.8×6.0×2.416×20×861.2830×1900FR-9X6.0×6.0×2.420×20×877.0830×1900FR-XXSpecialtySpecialtySpecialtySpecialtyX: 0 cooler, 1 freezer, 2 blast freezer Welcome customized orders!
